PART #12AA9123353011

AGM APACHE A-9

$12,599.00
Package Includes


Characteristics
Quick Order
Add to cart
Compare

Export Restrictions:
Item demonstrated in this is dependent upon US trade guidelines and may require a permit preceding fare. Any redirection in opposition to US Government guidelines is denied.

Description And features

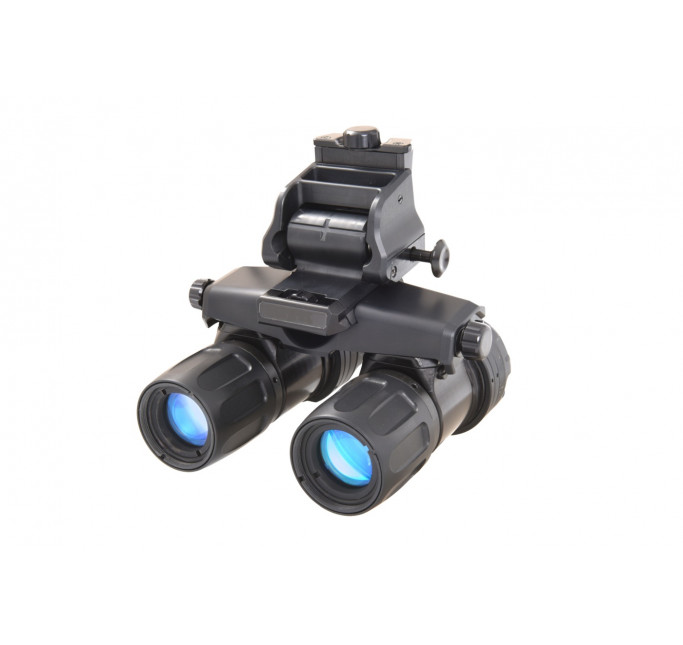

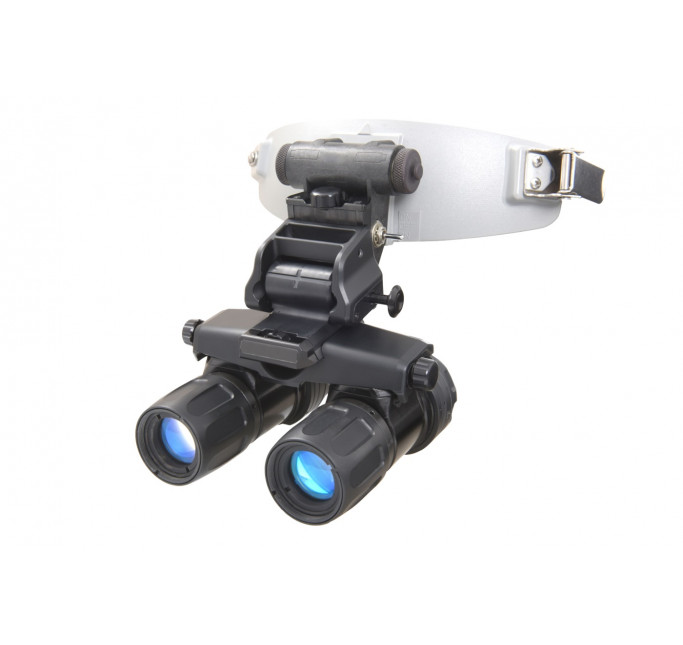

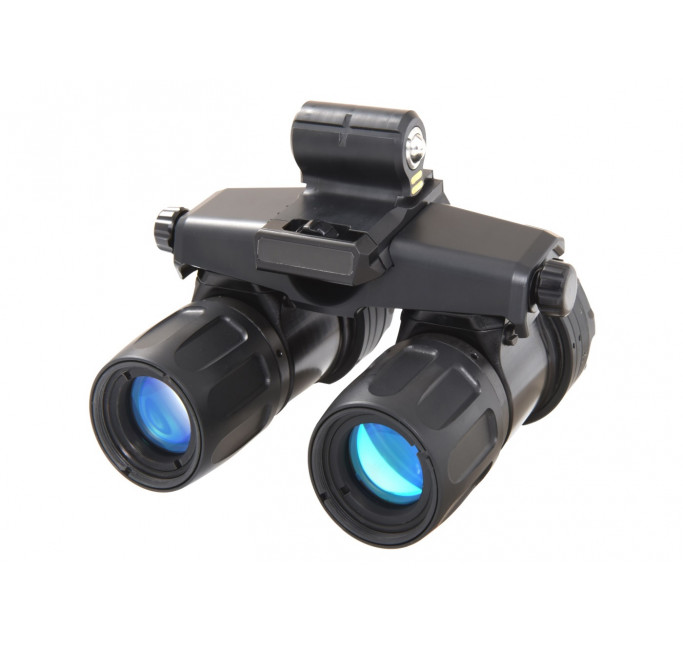

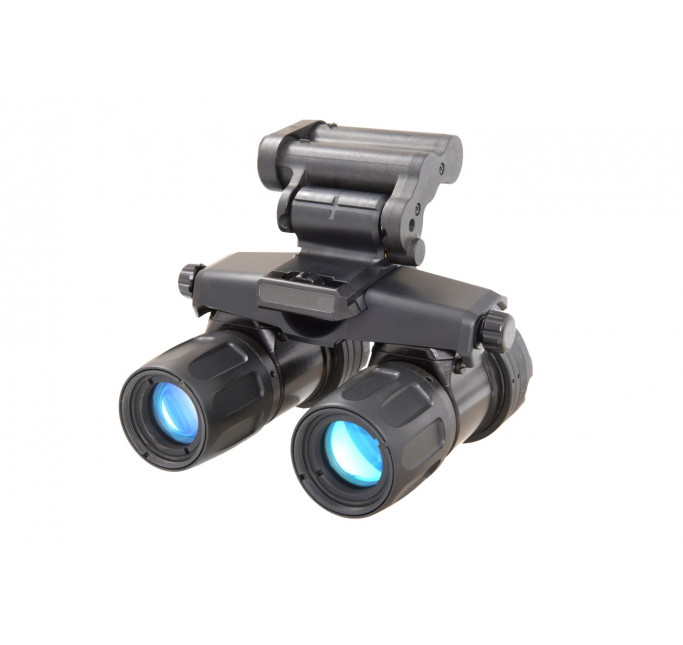

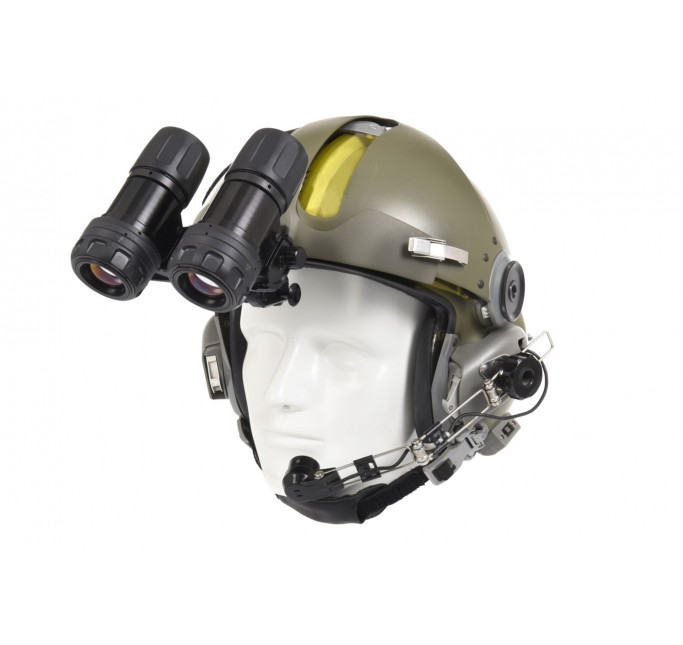

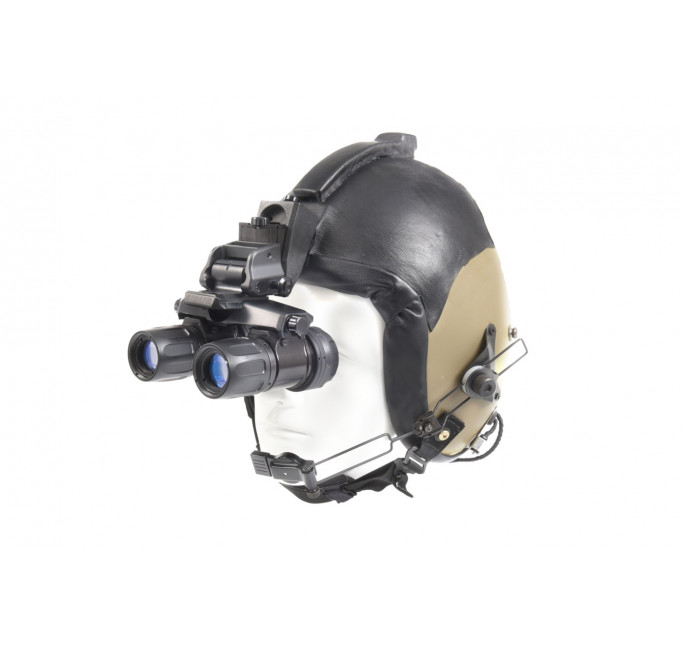

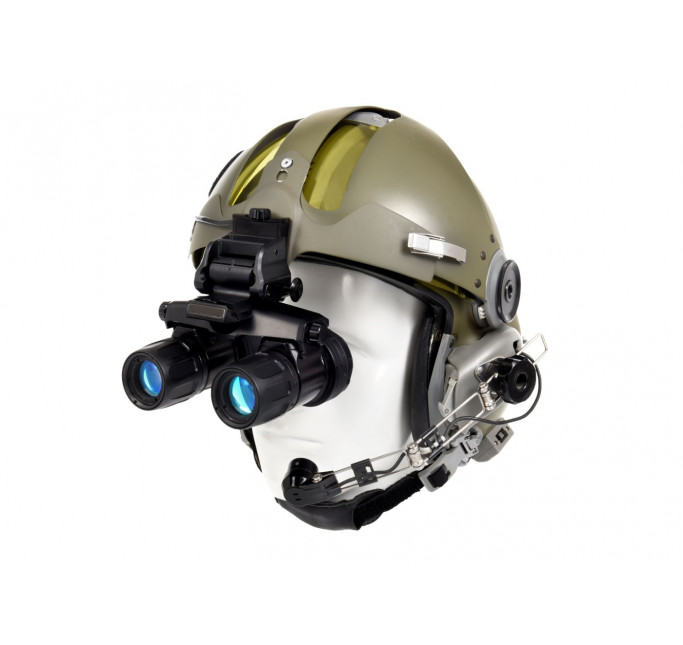

The A-9Apache Airborne Night Vision System is a variant of the AN/AVS-6(v)/9 Series ANVIS Goggle, which is a standard field production of the U.S. Army/Navi. AGM Global Vision takes the system to the next level by offering the Apache A-9 with standard image intensifier tubes with green and high-contrast white phosphor. The Apache A-9 features a class A or B filter coated lens and has a minimum 40 degree viewing angle. Wide 27mm eyepieces with vision can be regulated from +2 to -6 dioptres for most adjustment lenses. Additionally, the Apache A-9 holds interdental spaces from 51 to 72 mm and offers tilt adjustment of more than 10° to compensate for a wide variety of helmet positions during operation.

Specifications

Field of View

40°

System Resolution

1.3cy/mR minimum

IPD

52mm – 72mm

Vertical Adjustment

25mm

Fore/Aft Adjustment

27mm

Collimation

Convergence: 1.0° Dipvergence: 0.33° Tilt Adjustment: 10°

Battery Type/Life

AA 1.5VDC / 80 hours battery pack load

Environmental

MIL-STD-810H

Magnification

1.0X

Focus Range

25cm to infinity

Diopter Adjustment

-6 to +2 dpt

Weight

Binocular: 500g Mount: 150g

Package Includes

Apache A-9 Unit Assembly, Helmet Mount Assembly, Soft Carrying Case, Counterweight, 4 each AA Batteries, Battery Pack Assembly, Neck Cord, Lens Tissue, Screwdriver, Manual
