  • AGM Protector TM25-384
PART #3083451004PR21

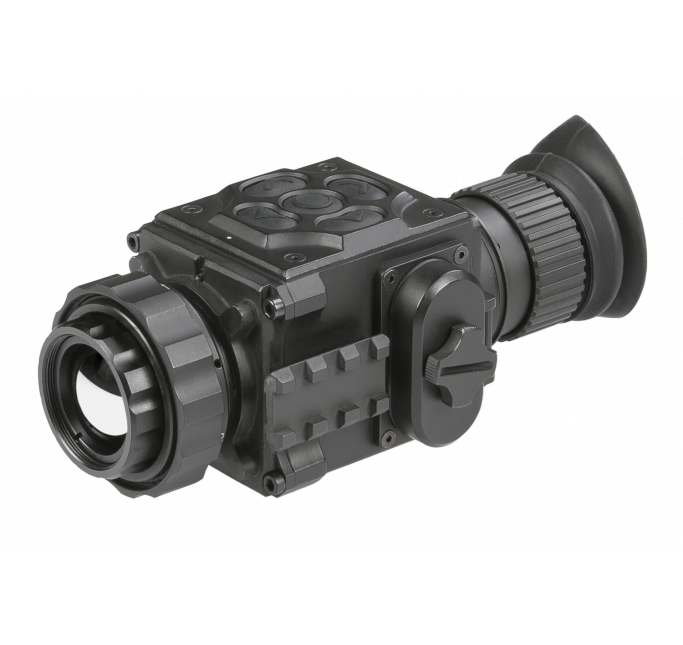

AGM Protector TM25-384

Package Includes
  • Soft Carrying Case
  • Lens Cloth
  • User Manual
  • Detector type: 17μm Uncooled Microbolometer
  • Refresh rate: 50 Hz
  • Resolution: 384x288
  • FOV: 15.0° x 11.2°
Quick Order
Add to cart

Export Restrictions:
Item demonstrated in this is dependent upon US trade guidelines and may require a permit preceding fare. Any redirection in opposition to US Government guidelines is denied.

Description And features

AGM Protector is the most technically perfect range of thermal monoculars presently existing on the commercial base. Aviation grade aluminum and magnetic alloy combined with extra-quality lenses make the device light in weith strong and reliable at the same time. With non-cooled infrared rays and a longer range, this AGM Global Vision longwave thermal imaging camera is ideal for daytime and nighttime applications, regardless of the weather and ambient factors. Different types of optics (25 mm, 50 mm, 75 mm) allow the user to work either as a small handheld thermal imaging monocular or as a long range surveillance device. The Protector's thermal monocular is simply attached to an extra-long power battery (5 V), which extends its lifetime. An additional Wi-Fi accessory is also included for real-time video recording and video streaming support.

  • Automatic or manual (silent) calibration
  • Unrivaled clearness, adaptability and unwavering quality
  • Tripod mountable
  • High resolution display
  • 2x and 4x digital zoom
  • Picture in Picture mode with 2x digital zoom
  • Lightweight and compact design
  • Stadiametric rangefinder
  • Powered by two standard CR123A batteries
  • External power supply via micro-USB
  • Simple to work control panel
  • Integral MIL-STD-1913 rail on unit for optional accessories
  • Optional external Wi-Fi module and video recorder
  • Constrained 3-Year Warranty


Detector type

17μm Uncooled Microbolometer

Refresh rate

50 Hz



Lens system

25 mm; F/1.0

Optical magnification


Field of view (H × X)

15.0° x 11.2°

Digital zoom

1×, 2×, 4×

Diopter adjustment range

-5 to +5 dpt

Focusing range

10 m to infinity


HD Display 1024x768

Video/Photo Format


Temperature imaging palettes

11 Image palettes


S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)

Battery Type

Two CR123A 3V Lithium Batteries

Battery Life (Operating)

Up to 5 hr

Power supply

5V USB / 3.6~7.2V

Operating Temperature Range

-40°C to +70°C (-40°F to +158°F)

Degree of Protection



0.44 kg (0.83 lbs)

Overall Dimensions

195 x 70 x 58 mm (7.7 x 2.8 x 2.3 in

Package Inludes

Thermal Imaging Monocular, Lens Cloth, Soft Carrying Case, User Manual
