  • AGM Explorator TB50-384
PART #3083454006EX51

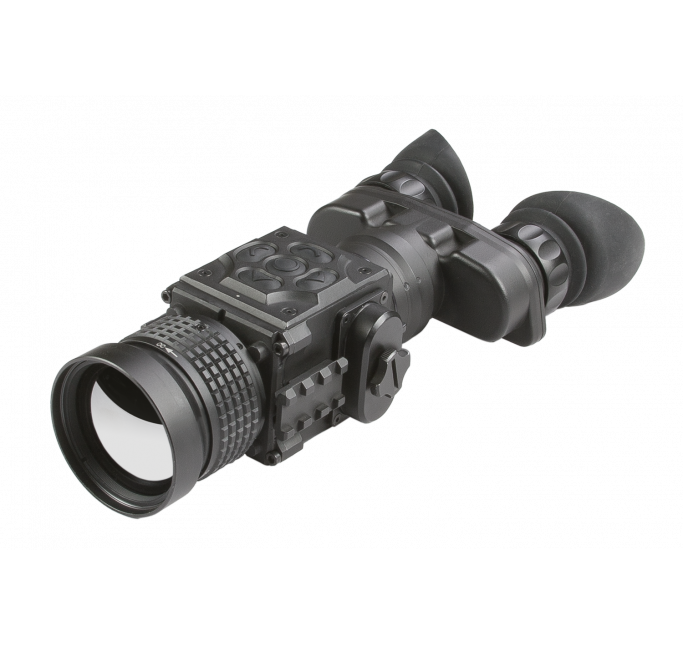

AGM Explorator TB50-384

$3,989.00
Package Includes
  • Thermal imaging bi-ocular
  • Lens Cloth
  • Soft Carrying Case
  • User Manual
Characteristics

Detector type: 17μm Uncooled Microbolometer

Refresh rate: 50 Hz

Resolution: 384x288

Quick Order
Add to cart
Compare

Export Restrictions:
Item demonstrated in this is dependent upon US trade guidelines and may require a permit preceding fare. Any redirection in opposition to US Government guidelines is denied.

Description And features

AGM Explorator is the newest and most advanced thermal imaging device presently on sale.The binoculars are constructed of high grade aluminum and magnesium alloy, which ensures that they are both durable and light-weight. Because of its watertightness, the equipment operates well in harsh weather and difficult ambient conditions. The Explorer is offered in two modifications - with germanium objectives with diameters of 50 and 75 mm, which makes it possible to choose the most appropriate option for the given mission. The device can be easy to install on a stand, allowing the operator to use the thermal binoculars conveniently / without using hands. The Explorator's convenient interface, handy and easy to use keys make it incredibly easy to adopt and use. The thermal imager has ten various image palette choices: white hot/black hot, etc., which could be readily customized according to different ambient circumstances.This advanced biocular unit can operate with both two CR123A 3V lithium batteries and two CR123 rechargeable batteries with voltages from 3.0V to 3.7V. In fact, an outdoor battery pack (5 V) attached through a micro-USB port offers extra working time

  • Integral MIL-STD-1913 rail on unit for optional accessories
  • Superior clarity, versatility and reliability
  • Lightweight and compact design
  • Dual eye viewing system for comfortable, extended viewing sessions
  • Powered by two standard CR123A batteries
  • Easy to operate control panel
  • High resolution display
  • 2x and 4x digital zoom
  • Limited 3-Year Warranty
  • Automatic or manual (silent) calibration
  • Stadiametric rangefinder
  • Tripod mountable
  • External power supply via micro-USB
  • Optional external Wi-Fi module and video recorder
  • Picture in Picture mode with 2x digital zoom

Specifications

Detector type

17μm Uncooled Microbolometer

Refresh rate

50 Hz

Resolution

384x288

Lens system

50 mm; F/1.0

Optical magnification

2.5×

Field of view (H × X)

7.5° x 5.6°

Digital zoom

1×, 2×, 4×

Diopter adjustment range

-5 to +5 dpt

Focusing range

10 m to infinity

Display

HD Display 1024x768

Video/Photo Format

AVI / JPG

Temperature imaging palettes

11 Image palettes

Interfacing

S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)

Battery Type

Two CR123A 3V Lithium Batteries

Battery Life (Operating)

Up to 5 hr

Power supply

5V USB / 3.6~7.2V

Operating Temperature Range

-40°C to +70°C (-40°F to +158°F)

Degree of Protection

IP67

Weight

0.75 kg (1.6 lbs)

Overall Dimensions

273 x 125 x 64 mm (10.7 x 4.9 x 2.5 in)

Package Inludes

Thermal Imaging Bi-Ocular, Lens Cloth, Soft Carrying Case, User Manual
