  • AGM ASP TM50-336
PART #3093451006AS51

AGM ASP TM50-336

$4,482.00
Package Includes
  • Two Lithium CR123A batteries
  • Lens Tissue
  • Operators Manual
  • Packing Box
  • Remote Control
  • Soft Carrying Case
Characteristics
  • Detector type: FLIR Tau 2 17µm Uncooled Microbolometer
  • Refresh rate: 60 Hz
  • Lens system: 50 mm; F/1.0
  • Resolution: 336x256
Quick Order
Add to cart
Compare

Export Restrictions:
Item demonstrated in this is dependent upon US trade guidelines and may require a permit preceding fare. Any redirection in opposition to US Government guidelines is denied.

Description And features

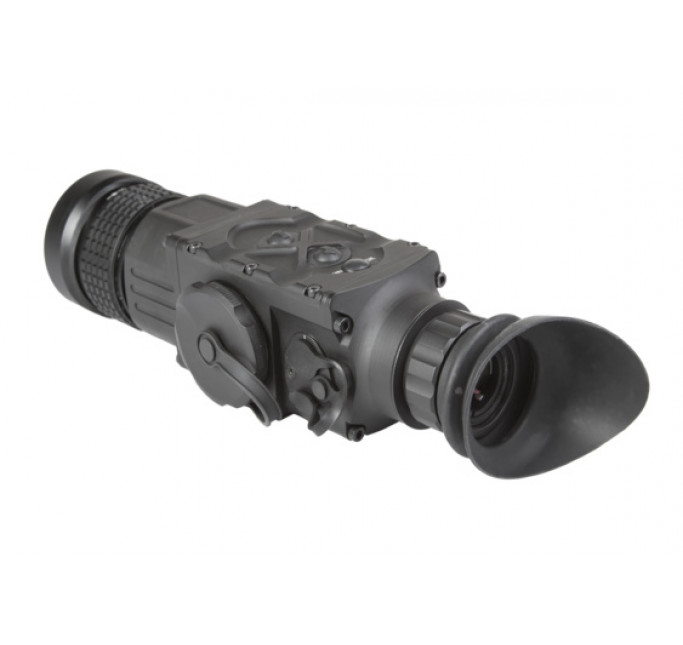

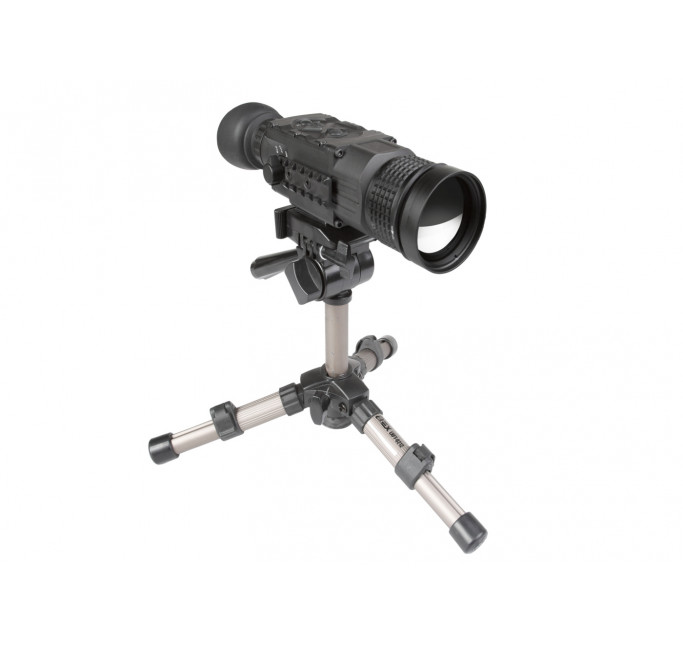

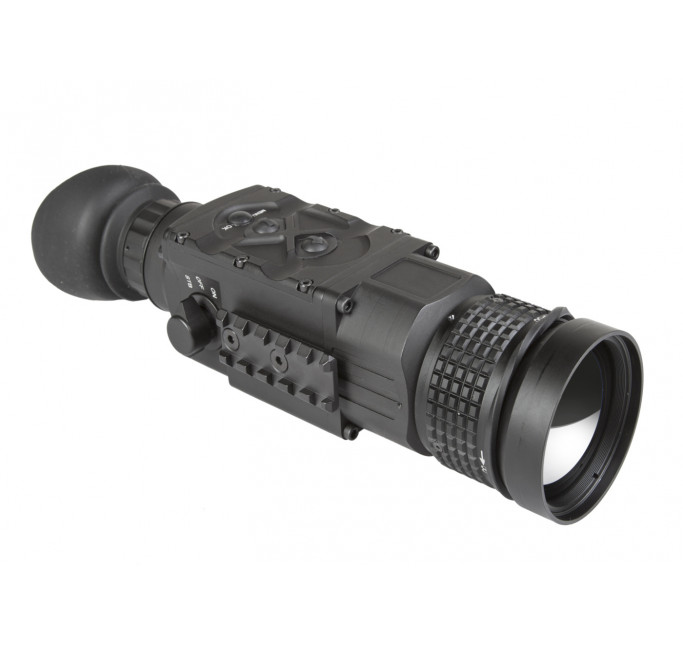

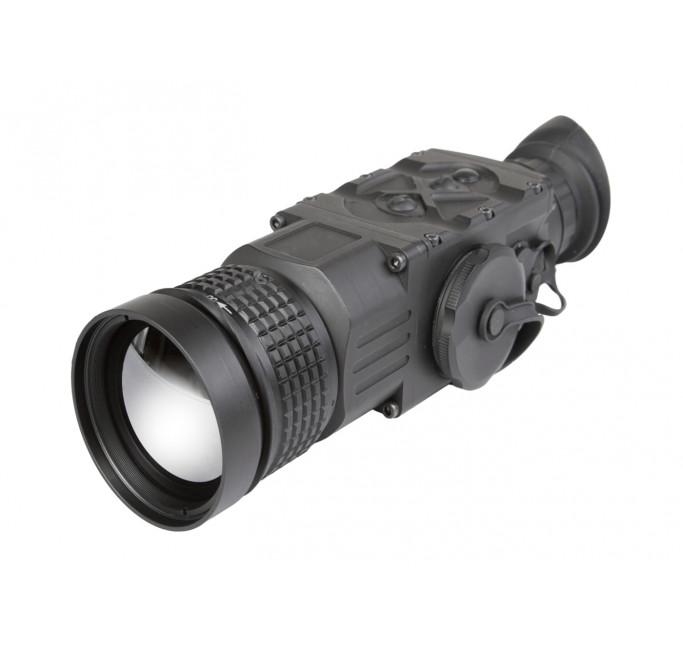

AGM ASP is a range of the most sophisticated thermal monoculars on the market today. Based on the cores of the FLIR Tau 2 VOx microbolometer and produced from a premium aircraft aluminum metal alloy, it ensures long service life and excellent features for even the most demanding customers. This non-cooled Long Wavelength AGM thermal imaging camera is designed for both daytime and night-time applications, regardless of the environment and weather conditions. A wide range of different zoom and pan lenses (25, 50 and 75 mm) allows the user to work with it either as a small pocket monocular for thermal imaging or as a long-range monitoring device. The ASP thermal monocular could be attached simply to an extra-battery for longer working times. An additional WiFi module is also included for real-time video sharing and recording.

  • Fueled by two standard CR123A batteries
  • Digital zoom: 1x, 2x, 4x, and 8x
  • Integral MIL-STD-1913 rails on unit for optional accessories
  • Easy and intuitive operation
  • Restricted 3-Year Warranty
  • Wireless remote control
  • FLIR Tau 2 17µm pitch thermal sensor
  • Durable and lightweight design
  • Manually adjustable eyepiece and objective lens
  • External WiFi module
  • Optional video recording
  • A wide variety of color palettes
  • Waterproof
  • External power supply via micro USB

Specifications

Detector type

FLIR Tau 2 336 x 256 17µm Uncooled Microbolometer

Refresh rate

60 Hz

Resolution

336x256

Start up

3 seconds

Lens system

50 mm; F/1.0

Optical magnification

3.45×

Field of view (H × X)

7.8° x 5.9°

Digital zoom

1x, 2x, 4x Continuous digital zoom

Diopter adjustment range

-5 to +5 dpt

Focusing range

10 m to infinity

Display

(800x600)

Video output

PAL (768x574 pixels)/ NTSC (640x480 pixels)

Temperature imaging palettes

White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM

Interfacing

S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack)

Battery Type

Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2)

Battery Life (Operating)

Up to 4 hr (optional up to 12 hrs)

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Weight

0.69 kg (1.5 lbs)

Overall Dimensions

220 × 72 × 60 mm (8.6 × 2.8 × 2.3 in)

Package Inludes

Thermal imaging monocular, Lens Cloth, Soft Carrying Case, User Manual
